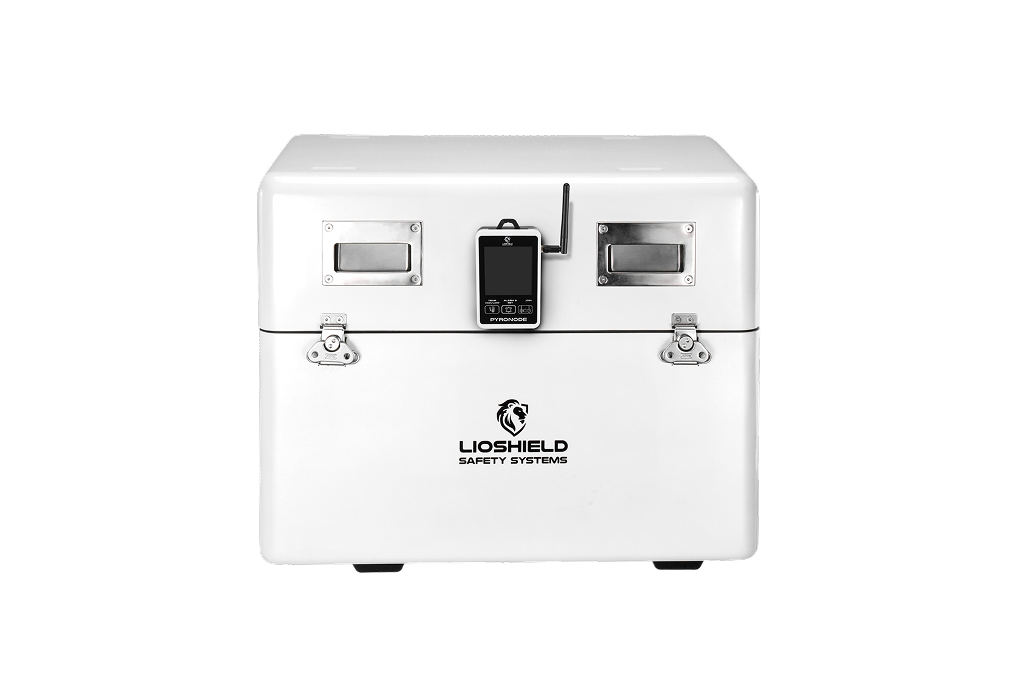

Pyrosafe M1
MID-SIZE STORAGE. MAXIMUM SAFETY.
Mid-Size Power,
Full-Scale Protection.
Built with LioShield’s composite thermal architecture, the M1 delivers industry-leading safety in a rugged, field-ready design.
Ideal For
- Lithium batteries from sea scooters, e-bikes, drones, and power tools
- Charging and temporary storage of mid-capacity battery packs
- Flares, fuel canisters, and other flammable materials carried onboard
- Workshop and maintenance-bay battery safety stations
Product Features
Fire-Tested to 1200°C
Proven to contain internal lithium battery fires for up to 60 minutes Storage
IPX5 Waterproof rated & Dust-Sealed
Built to withstand marine environments and rough handling
Active Venting System
Controlled pressure release for safe gas evacuation without flame escape
Storage Capacity
Up to 12 kW·h – Ideal for medium-scale battery systems and e-mobility packs
CoreSense Ready
Integrates with PyroNode and PyroBridge for live temperature monitoring and alerts
Dual-Lock Security
Tamper-proof, drill- and pry-resistant construction
5-Year Replacement Warranty
Built for a lifetime of reliability
Technical Specification
| MODEL | PYROSAFE M1 |
|---|---|
| RRSP (Ex-Works) | $ 5990 / € 5095 |
| Geometric Storage Volume | 120 Litres / 32 US Gallons |
| Exterior Dimensions L x W x H (mm) | 680 x 530 x 535 |
| Interior Dimensions L x W x H (mm) | 600 x 450 x 450 |
| Approximate Weight (Kg) | 20.5 |
| Maximum Rated Battery Storage Capacity (kW-h) | 14 |
| Storage Uses |
- 2–4 × 25 Litre Petrol Jerry cans* - Large removable batteries from e-boards and e-foils - Walkie talkies, satellite phones, torches - Lithium batteries from drones, hand-held tools & polishing machines - Gas canisters, gas bottles* - Flares - Other flammable and hazardous liquids* |
| Inner Materials | High performance Aramid-Carbon Composite |
| Core Materials | Ultra-high flame retardant UL-94 V0 rated low density foam |
| Outer Materials | High gloss epoxy finished specially formulated glass fiber shell |
| * PyroSafe is not designed to contain gas leaks or flammable liquids leakage. It is only designed to contain any fire or flames from coming out. | |
Product Use Case

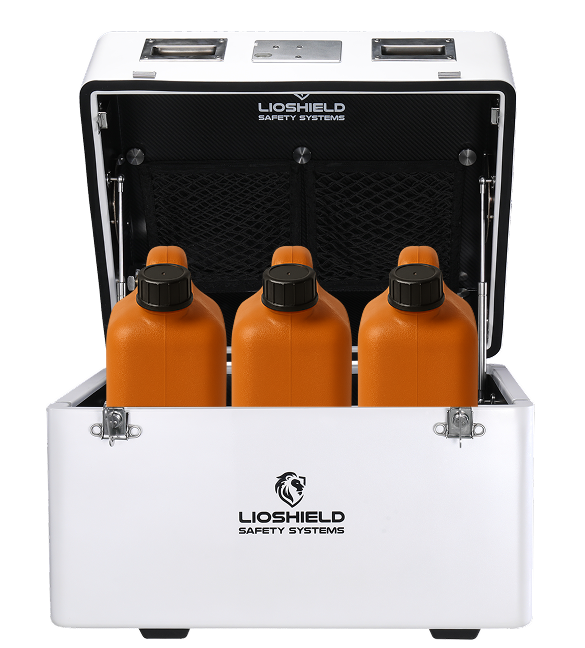

The M1 is the all-rounder in the PyroSafe range. It safely stores 2–4 petrol jerry cans, large removable e-board and e-foil batteries, walkie talkies, satellite phones, torches, drone batteries, handheld tool batteries, gas canisters, flares, and other hazardous liquids.
Offering more volume while still easy to place on board, it’s a balanced choice for crews who need flexibility. With its refined design and strong build quality, it integrates seamlessly into deck layouts and interior storage areas.
Product Highlights
1200 °C Fireproof
The PyroSafe series is certified to withstand extreme heat up to 1200 °C, offering unmatched protection against lithium thermal runaway and external fire sources. Even under catastrophic events, the integrity of the storage unit remains uncompromised.
Advanced Thermal Containment
Every PyroSafe unit is engineered to isolate fire and prevent flame spread, using a multi-layer barrier system that absorbs and blocks heat transfer. This ensures that lithium battery fires remain safely contained inside the unit.
CoreSense️ Smart Monitoring
Equipped with PyroBridge™️ and PyroNode™️ sensors, PyroSafe constantly monitors internal temperatures. Local alarms trigger instantly when unusual rises are detected, providing early warning before escalation.
Aramid-Carbon Composite Core
The core structure combines aramid fibers for fire resistance with carbon layers for strength, creating a shield that resists puncture, impact, and flame. This advanced composite delivers both safety and durability in demanding environments.
Emergency Venting System
During thermal runaway, trapped gases can increase internal pressure. PyroSafe’s controlled venting channels safely release gases while keeping flames sealed inside—minimising risk of explosion without compromising containment.
Local Visual & Audible Alarms
When fire or extreme heat is detected, bright indicators and loud audible alarms activate immediately. These instant alerts allow users to react quickly and take the necessary steps to secure their environment.
