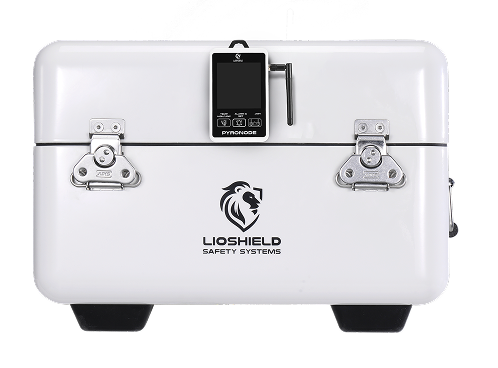

Pyrosafe S1
COMPACT. CAPABLE. UNCOMPROMISING.
Compact Safety,
Engineered to Perform.
Engineered with multi-layer thermal insulation and LioShield’s signature fire-containment system, the S1 offers professional-grade protection for smaller lithium packs and flammable materials on board yachts, in workshops, or during transport.
Ideal For
Built for onboard safety
- Lithium batteries from drones, e-scooters, power tools, and dive gear
- Walkie-talkies, satellite phones, and torches
- Flares, gas canisters, and other small hazardous materials
Product Features
Fire-Tested to 1200°C
Proven to contain internal lithium battery fires for up to 60 minutes Storage
IPX5 Waterproof & Rated Dust-Sealed
CoreSense designed for marine and industrial
Pressure-Relief Venting System
Safely channels expanding gases while sealing off flames
Storage Capacity
Up to 4 kW·h – Safely accommodates small lithium battery sets
CoreSense Ready
Integrates with PyroNode and PyroBridge for live temperature monitoring and alerts

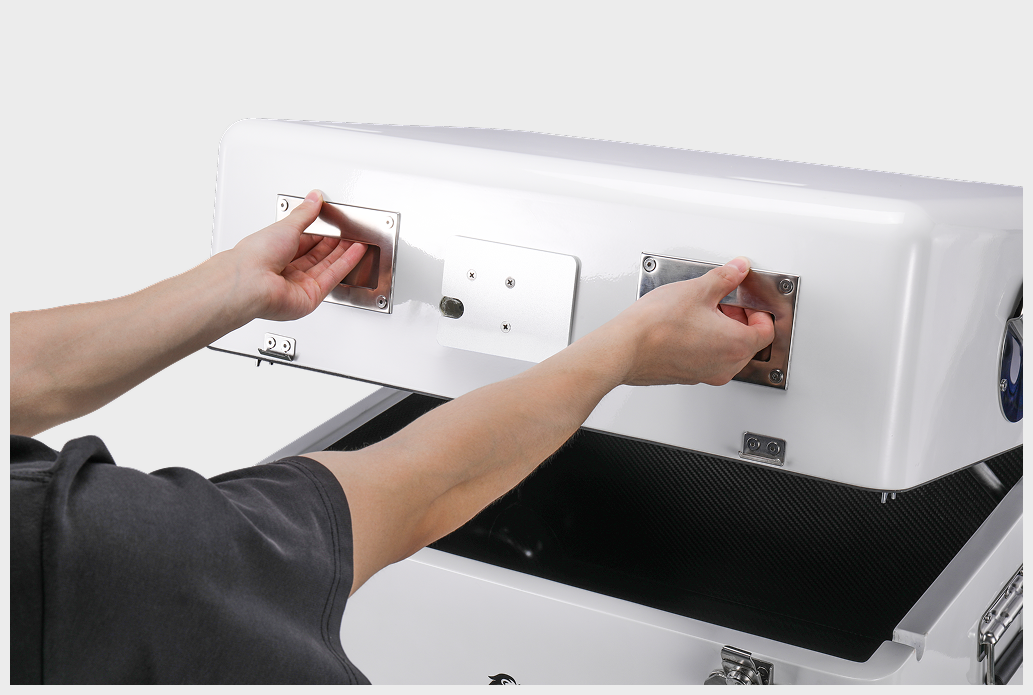

Dual-Lock Security
Tamper-proof, drill- and pry-resistant design
5-Year Replacement Warranty
Built for a lifetime of reliability
Technical Specification
| MODEL | PYROSAFE S1 |
|---|---|
| RRSP (Ex-Works) | $3990 / €3395 |
| Geometric Storage Volume | 18 Litres / 4.75 US Gallons |
| Exterior Dimensions L x W x H (mm) | 430 x 330 x 280 |
| Interior Dimensions L x W x H (mm) | 350 x 250 x 200 |
| Approximate Weight (Kg) | 7 |
| Maximum Rated Battery Storage Capacity (kW-h) | 2 |
| Storage Uses |
|
| Inner Materials | High performance Aramid-Carbon Composite |
| Core Materials | Ultra-high flame retardant UL-94 V0 rated low density foam |
| Outer Materials | High gloss epoxy finished specially formulated glass fiber shell |
| * PyroSafe is not designed to contain gas leaks or flammable liquids leakage. It is only designed to contain any fire or flames from coming out. | |
Product Use Case
The S1 is designed for smaller essentials like walkie talkies, satellite phones, torches, drone batteries, handheld tool batteries, gas canisters, flares, and other flammable or hazardous liquids. Its compact size makes it ideal for keeping critical gear safe while staying close at hand. With its sober colour palette and robust marine-grade finish, it sits naturally on the main deck or in a cabin, complementing yacht furniture without drawing attention.
Product Features
1200 °C Fireproof
The PyroSafe series is certified to withstand extreme heat up to 1200 °C, offering unmatched protection against lithium thermal runaway and external fire sources. Even under catastrophic events, the integrity of the storage unit remains uncompromised.
Advanced Thermal Containment
Every PyroSafe unit is engineered to isolate fire and prevent flame spread, using a multi-layer barrier system that absorbs and blocks heat transfer. This ensures that lithium battery fires remain safely contained inside the unit.

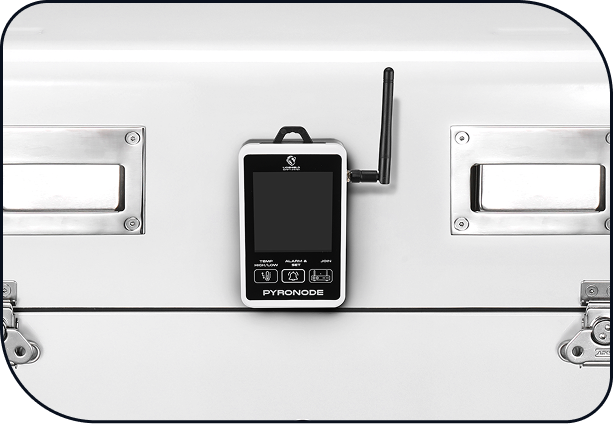

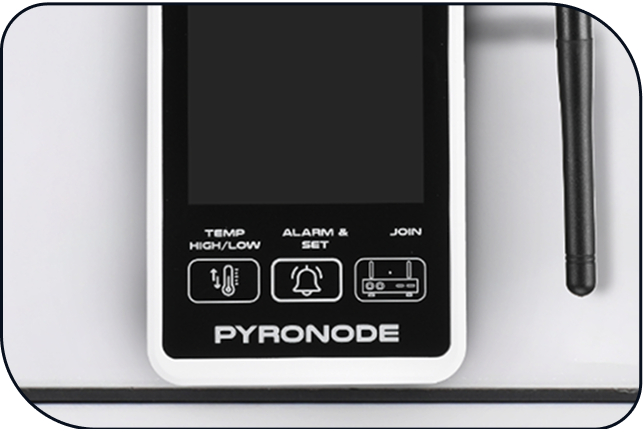

CoreSense️ Smart Monitoring
Equipped with PyroBridge™️ and PyroNode™️ sensors, PyroSafe constantly monitors internal temperatures. Local alarms trigger instantly when unusual rises are detected, providing early warning before escalation.

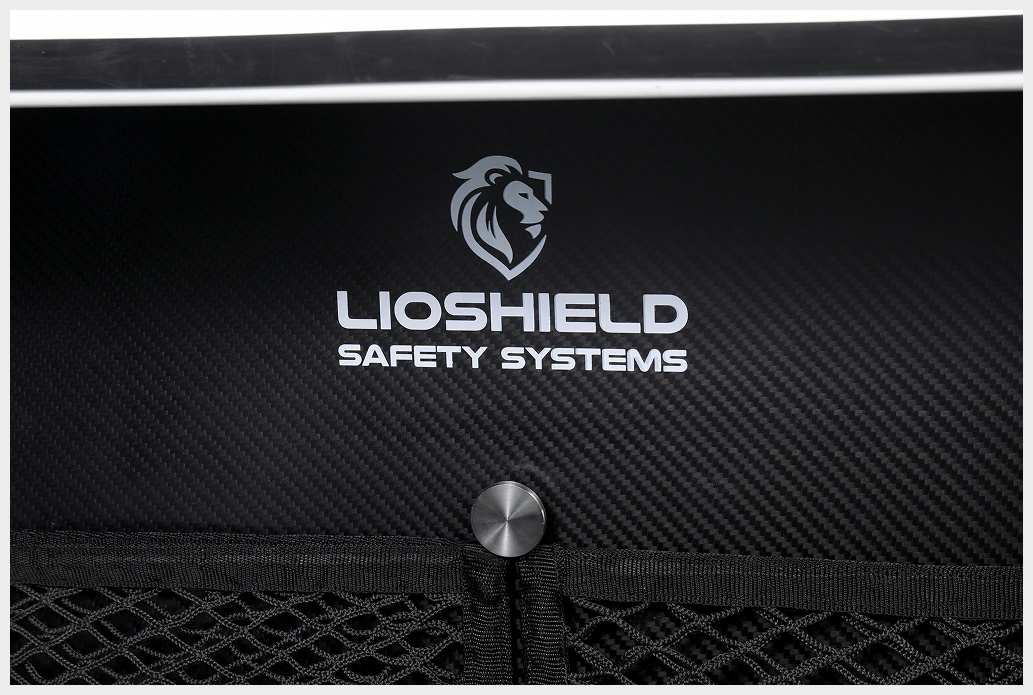

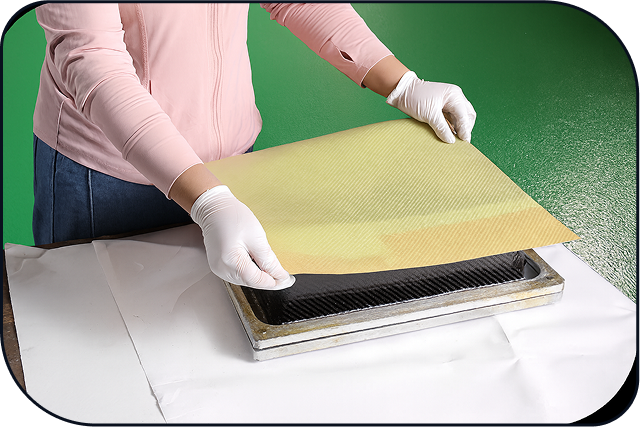

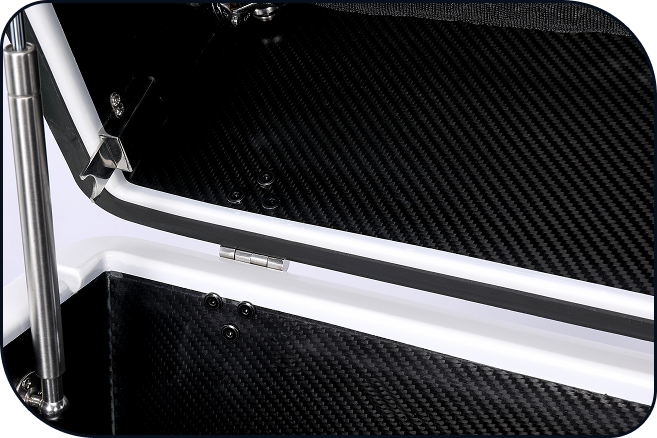

Aramid-Carbon Composite Core
The core structure combines aramid fibers for fire resistance with carbon layers for strength, creating a shield that resists puncture, impact, and flame. This advanced composite delivers both safety and durability in demanding environments.

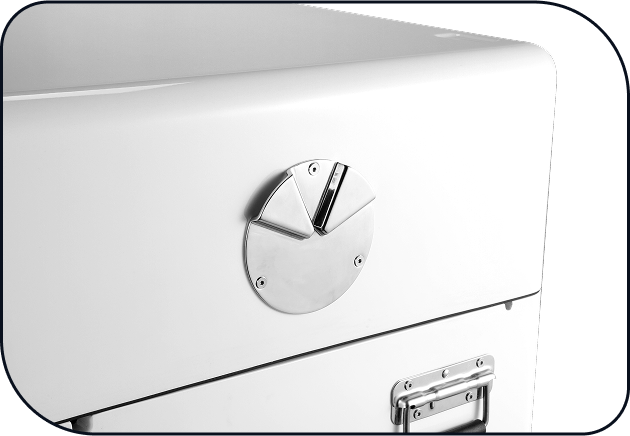

Emergency Venting System
During thermal runaway, trapped gases can increase internal pressure. PyroSafe’s controlled venting channels safely release gases while keeping flames sealed inside—minimising risk of explosion without compromising containment.
Local Visual & Audible Alarms
When fire or extreme heat is detected, bright indicators and loud audible alarms activate immediately. These instant alerts allow users to react quickly and take the necessary steps to secure their environment.
